100MW 200MW 600w Solar Panel Making Manufacturer Equipments

Automatic framing

As the demand for solar energy continues to rise, more and more companies are looking to produce solar panels at a larger scale. In order to achieve this, manufacturers are investing in equipment that can produce panels at a capacity of 100MW, 200MW, and even higher.

One of the key components of solar panel production is the equipment used to create the individual solar cells. These cells are made from silicon wafers, which are treated with various chemicals and processes in order to create the necessary electrical properties. Manufacturers typically use automated equipment to apply these treatments, and the equipment can vary significantly in size and complexity depending on the panel capacity.

Once the cells have been created, they are assembled into panels using specialized equipment. This may involve adding a protective layer, such as tempered glass, to the front of the panel and connecting the cells with wires or other conductive materials. The final product is then tested to ensure it meets the necessary performance standards.

Corner milling

When choosing a solar panel manufacturer, it's important to consider both the equipment and the production capacity. A well-equipped factory with a high production capacity can offer economies of scale that can help reduce overall costs. However, it's also important to ensure that the manufacturer has a strong quality control process in place to ensure that every panel meets the necessary standards for performance and durability.

With the demand for solar energy continuing to grow, it's likely we'll see more and more investment in equipment and technology to produce solar panels at higher capacities. As a result, we can expect to see prices continue to fall, making solar energy an increasingly affordable and accessible option for homes and businesses alike.

Glass unloader

1. Choose servo motor for high transfer accuracy and stable transmi ssion performance;
2. Advanced design principles and processing methods to ensure the reliability of the whole machine operation;
3. Automatic whole-process control to avoid personnel intervention and high production efficiency;
4. The whole machine is equipped with a safety fence, which has the safety protection function;
5. Computer programming and control, highly intelligent, simple and easy to operate;
6. Convenient installation, energy saving and environmental protection, easy to maintain, and low price

1. The machine adopts a synchronous belt, driven by a servo motor, and guided by a linear guide rail, which has the advantages of precise positioning, stable operation, and fast speed.
2. The suction cup is made of polyurethane and will not leave any marks on the battery string after suction.
3. The machine is equipped with power and gas protection.
4. The machine is fully automatic and does not require manual intervention.
5. The positioning accuracy of the battery string is ± 0.3 millimeters
6. Six power cords spaced between 1-10 millimeters apart
7. Compatible with multiple battery strings, size 156/182/210, 6-12 pieces
8. The main solar cells finger is compatible with 2/3/4/5 fingers

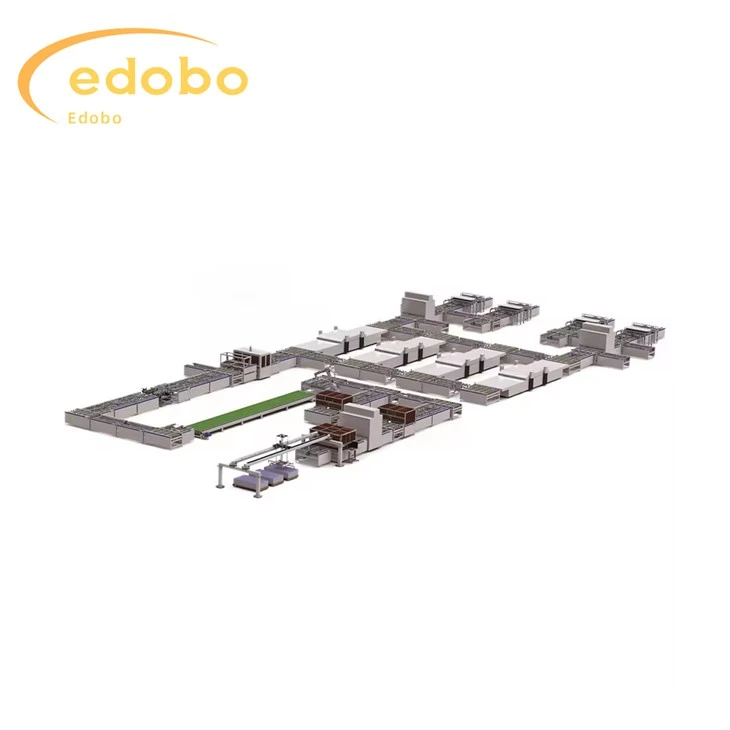

(1) Production line capacity: 50MW-500MW/year.
(2) The equipment power requirement is 380V (three-phase five wire system), and the power demand can be found in the equipment parameters of each unit. The power line configuration will be provided separately by our company.
(3) The compressed air requirement for the equipment is 0.6-0.8MPa, dry, clean, and meets the requirements of automated production lines; Dust particles ≤ 1um, water pressure dew point ≤ -40 ℃, oil (including steam) ≤ 0.1mg/;
(4) The cleanliness of the air in the factory shall not be less than 300000 level (ISO Class 8);
(5) Transmission equipment conveying speed: The transmission cycle time is less than 22s, which meets the requirement of 500MW/year production capacity. The entire line adopts variable frequency speed regulation, with a main speed regulation frequency set at 30HZ and a speed regulation range of 0-50HZ (specific speed can be found in the equipment parameters of each unit);
(6) External dimensions of transmission line: This equipment is a non-standard device, and the final layout diagram will be provided by Edobo Solar;
(7) Assembly line height and adjustment range: There is a certain height difference between the individual equipment and the transmission unit. For detailed external dimensions, please refer to the technical parameters of the individual equipment; The height of the transmission unit is generally 950mm ± 30mm;
(8) The transmission line and equipment operation range can be adjusted between components of length (1650mm-2600mm) * width (950mm-1500mm), enabling the transportation of components in various lamination methods.
(9) The transmission line is smooth and the offset size is less than 10mm;
(10) When the equipment is operating normally, the component failure rate caused by the equipment and transmission lines is less than 1/1000;
(11) Noise level during equipment operation ≤ 72dbA (excluding compression pumps)

1. The cell adopts CCD visual positioning, which has the advan­tages of high accuracy and stability;
2. The equipment can automatically receive, automatically layout and automatically export components, and layout is accurate positioning;
3. The suction cup is made of imported silicone material, which will not leave a mark on the surface of the battery;
4. Adopt the three-axis mechanical motion mode (rotating 180°);
5. The lateral movement adopts linear motor module, which has the advantages of fast movement speed, high repeated position­ing accuracy and stable performance, save the overall beat time;
6. Long and short edge change adjustment adopts quick locking mechanism, adjustment quickly, simple, convenient and reliable;
