Complete Solar Panel Production Line

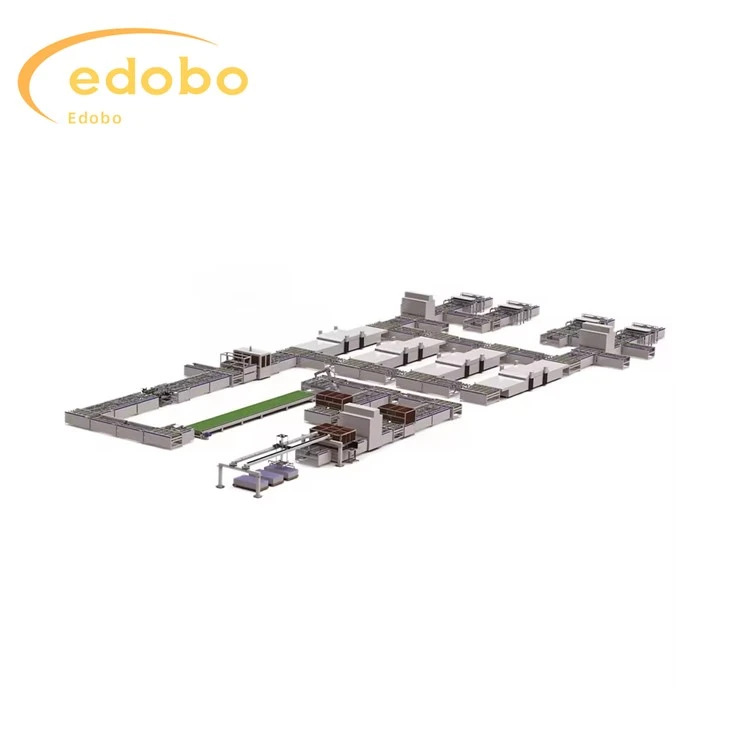

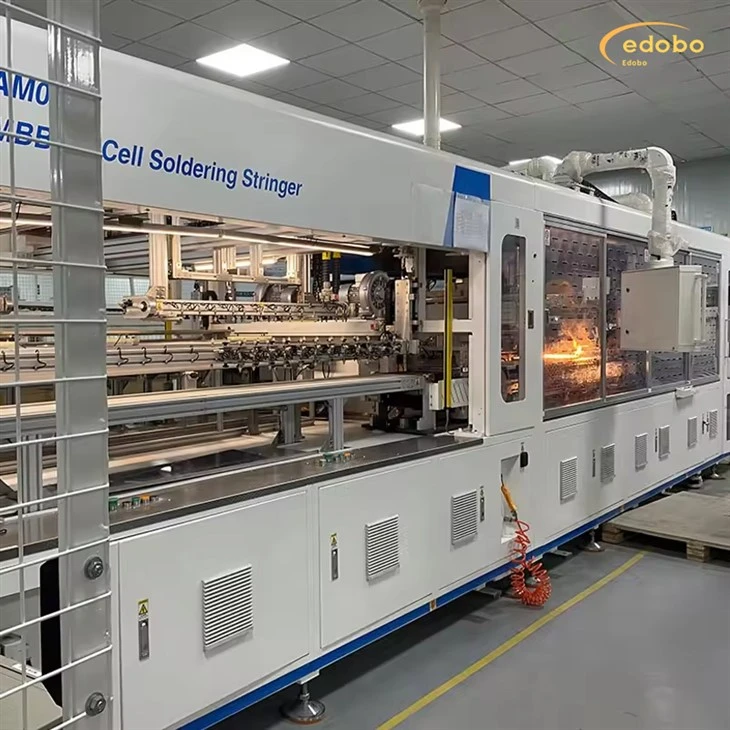

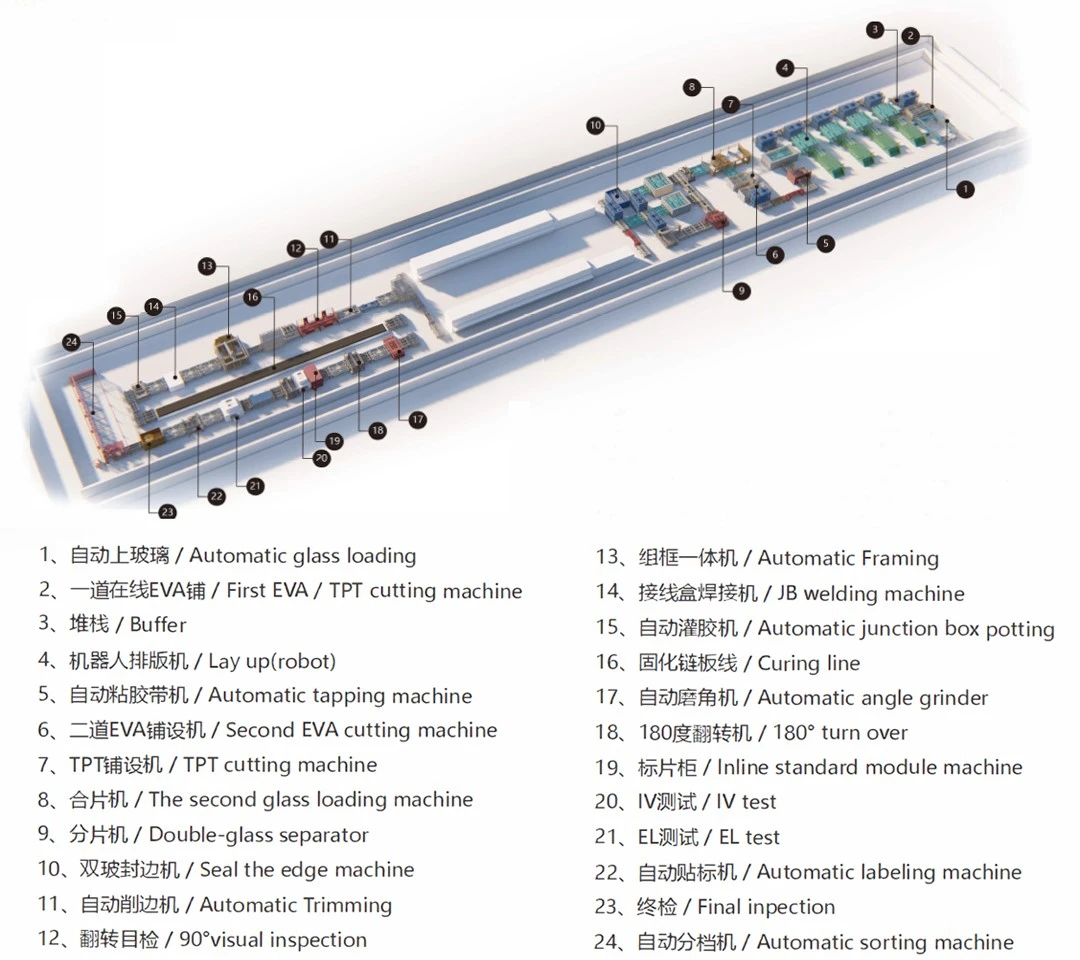

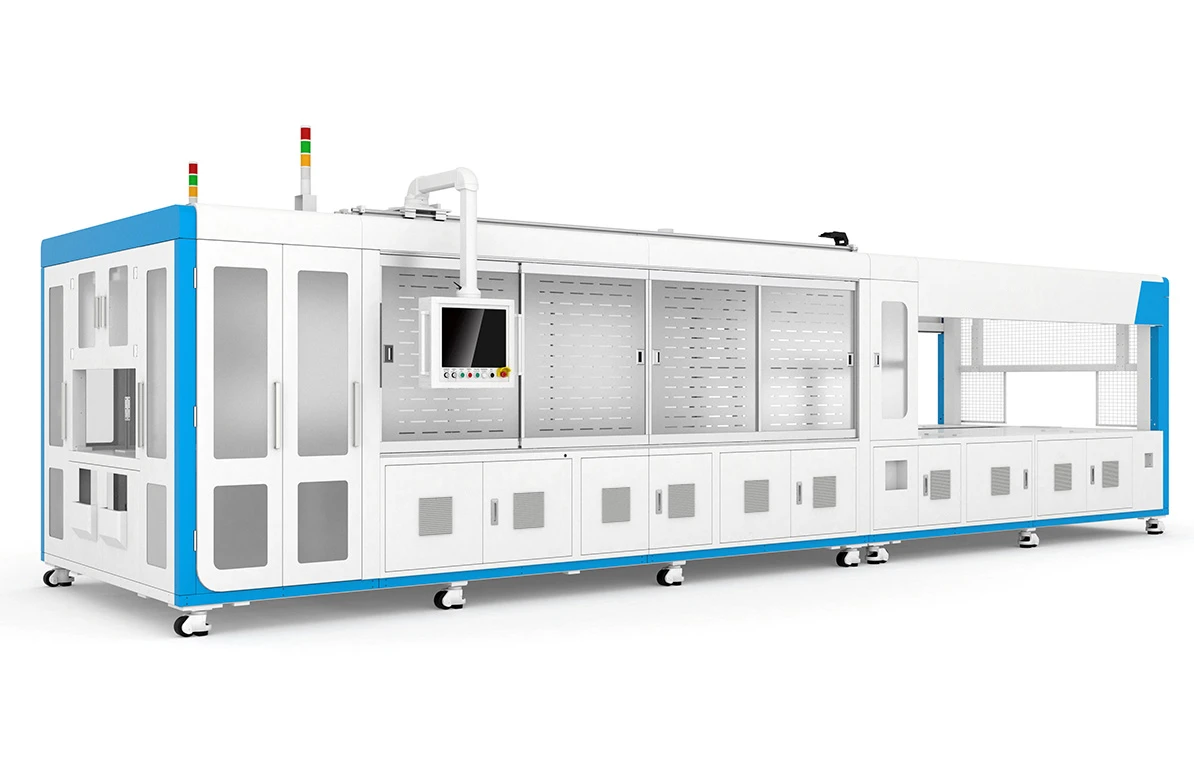

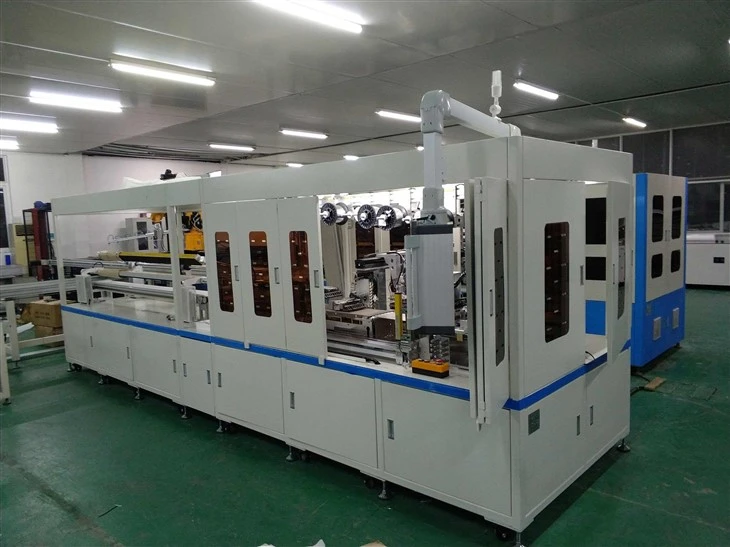

1.String welding machine

1. High-speed dual-track stringer that supports welding of solar cells with widths above 30mm, filling the domestic gap for high-speed stringers in this specification and offering customers a versatile solution with one machine for multiple applications.

2. Equipped with vision positioning and detection functions, along with robotic loading.

3. Features automatic ribbon bending and cutting functions, effectively reducing cell breakage caused by ribbon spacing.

4. Utilizes the most widely adopted non-contact infrared welding technology, ensuring even heating of both the cells and ribbon, reducing breakage rates.

5. Equipped with multiple temperature zones, enabling gradual heating and cooling to effectively minimize breakage.

6. Optional EL string inspection function for output.

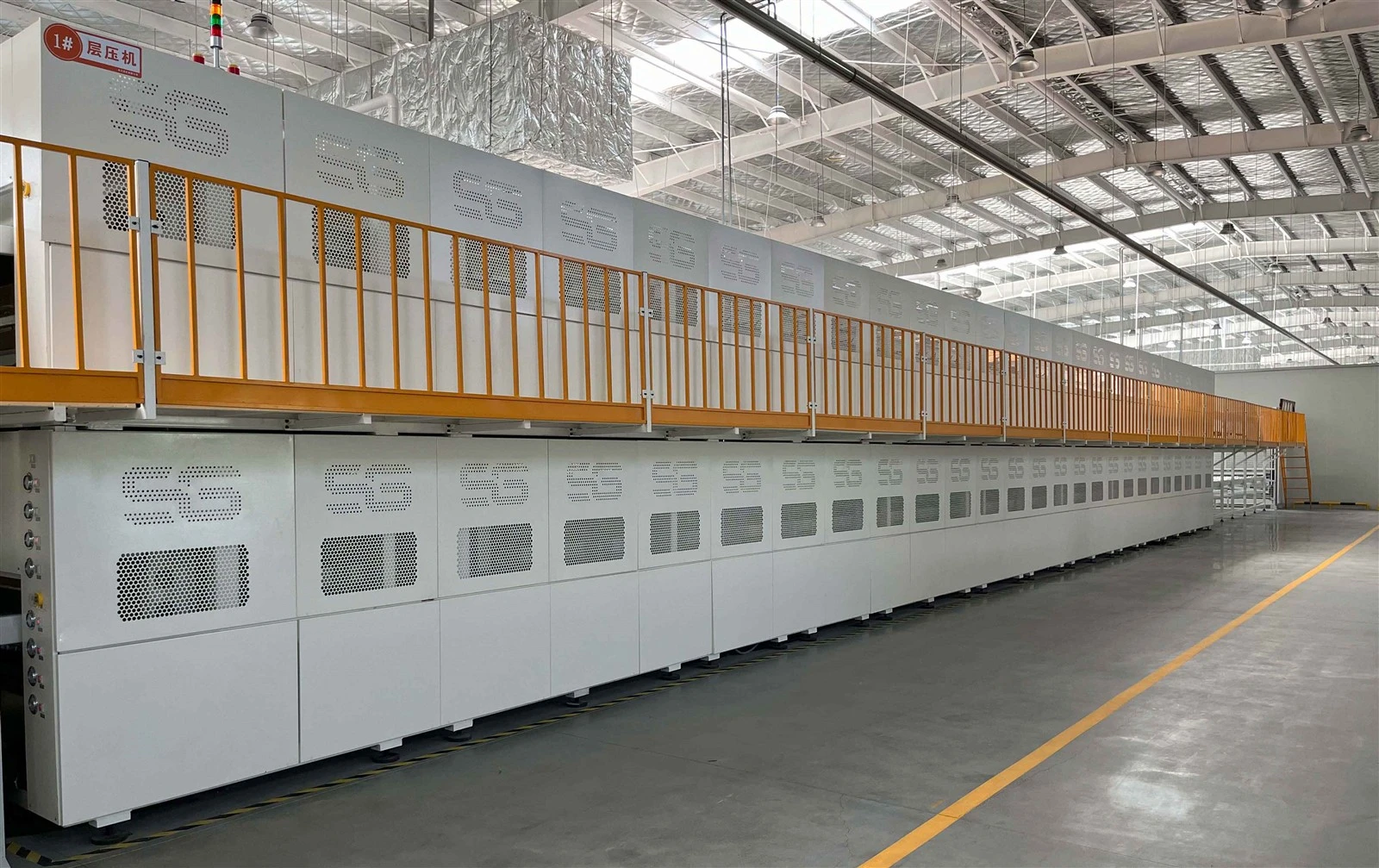

2.Laminator machine

The single-layer single-chamber fully automatic laminating machine is mainly composed of feeding stage (Class A), laminating stage (Class B), discharging stage (Class C), and auxiliary functional equipment such as vacuum cleaner, Roots pump set, vacuum pump, oil furnace, etc.

Integrated module design for overall equipment

1.1 The equipment adopts a high-strength overall structural design, which can meet the long-term normal and stable operation in a high-strength working environment;

1.2 Adopting oil heating method to ensure temperature uniformity and control accuracy, effectively ensuring the overall process performance of the equipment;

1.3 B-level, C-level, and A-level can operate synchronously or independently;

1.4 Intelligent control mode, PLC+distributed I/O+DC24V DC control system, high degree of automation, bus technology completely changes traditional wiring methods, low failure rate, and fast data transmission speed;

1.5 Large brand touch screen operation, with a simple and user-friendly interface, and comprehensive data display and chart statistics functions;

For more device information, please contact us

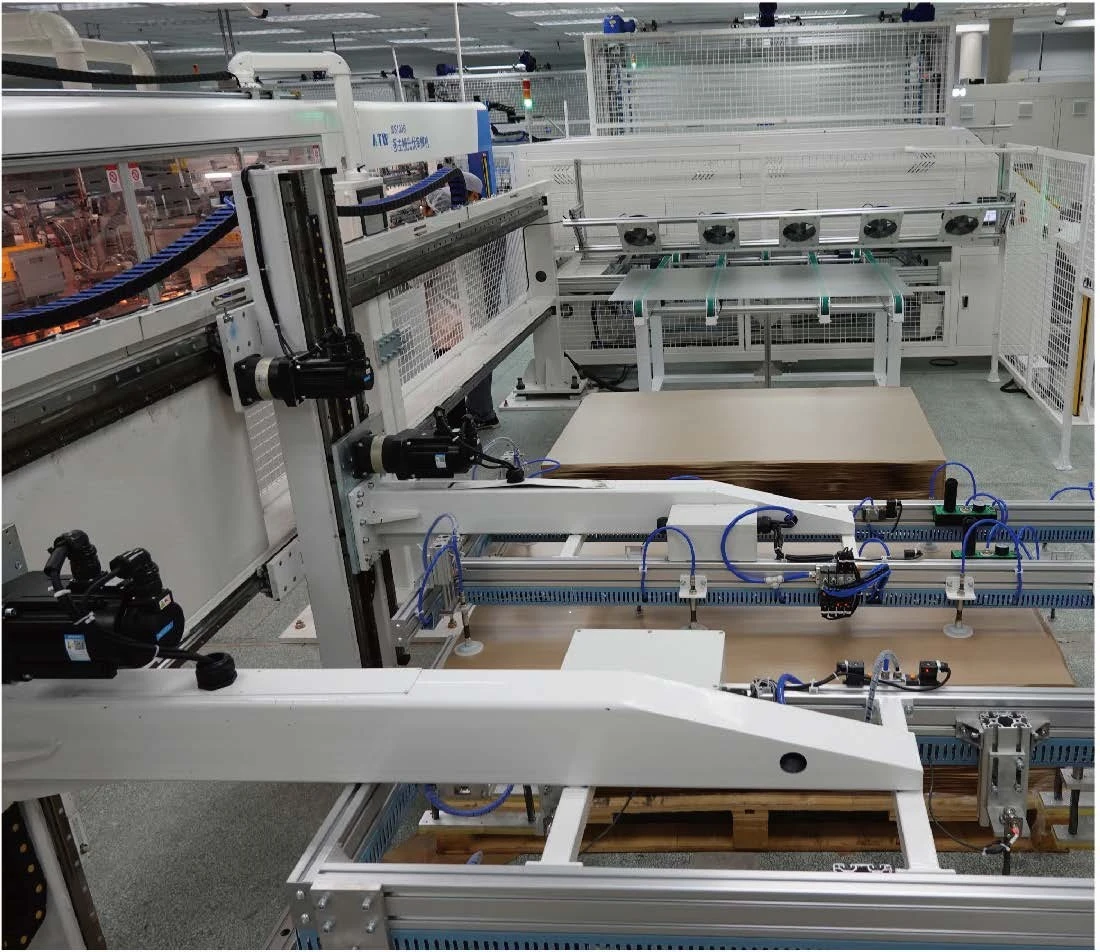

1.Automatic glass loading

1. Lift the glass from the glass trailer and place it on the assembly line
2. The machine includes two glass storage stations and one paper storage station.
3. The glass suction robot arm places the glass onto the assembly line, while the paper picking robot arm removes the paper from the glass.
4. The machine is driven by a servo motor, and the suction cup sucks the glass to the designated position.
5. The upper glass robotic arm is a cantilever structure, and the paper picking robotic arm is a cantilever structure.

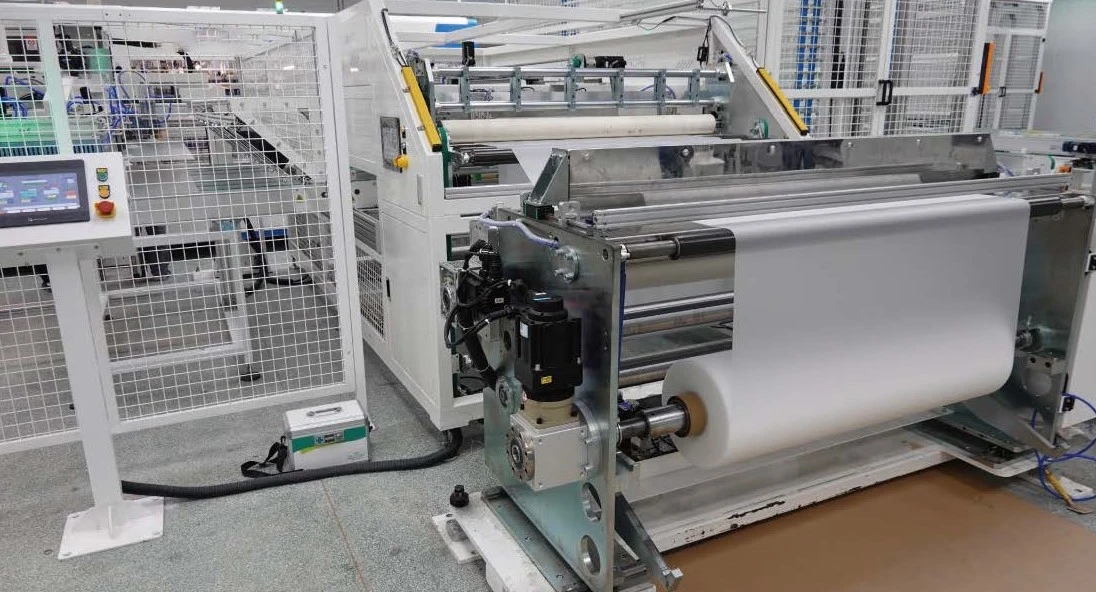

2.Auto EVA TPT cutting loading

First EVA online laying+second EVA online cutting + backboard online cutting
1. Adopting a synchronous belt transmission mechanism driven by servo motors, guided by linear guides, with precise positioning and smooth operation.
2. This machine is equipped with EVA feeding tools for operation.
3. The stretching speed of EVA can be automatically adjusted and runs stably.
4. EVA is cut by an integrated machine to ensure smooth and neat cutting edges
5. This machine has an EVA automatic straightening function, with a straightening range of ± 2mm.
6. The main body of the equipment is equipped with a protective cover and a dust cover.

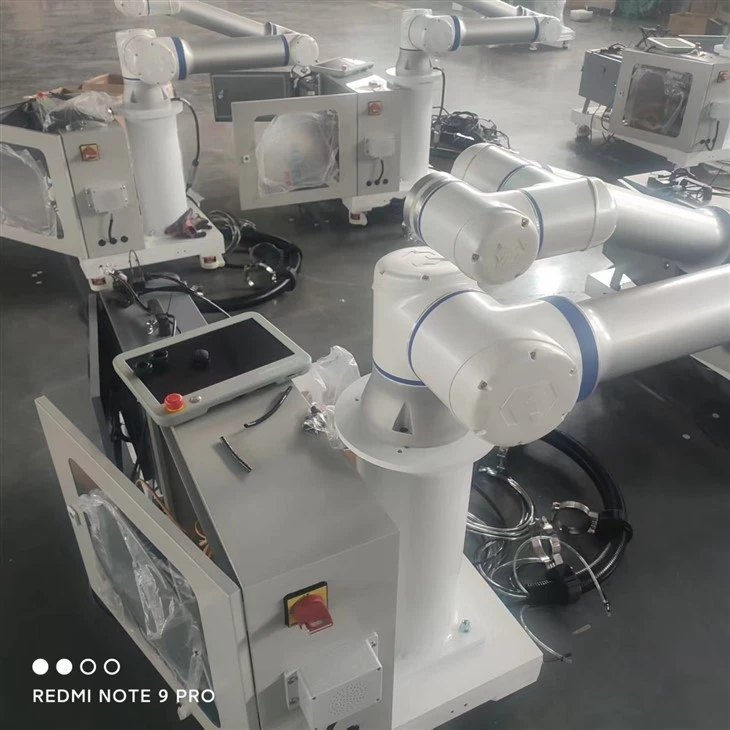

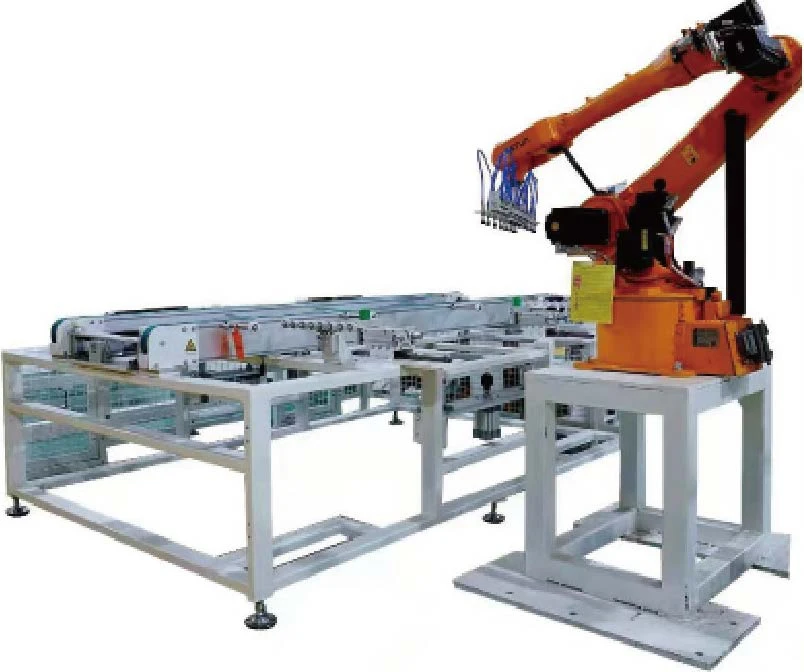

3.Automatic lay up (robotic arm)

1. The feeding method is short in and long out, and the equipment function is to arrange them in a corresponding sequence. The long side of the battery string is parallel to the long side of the component. The local typesetting system can be used to arrange components of 96, 72, and 60 pieces, and has mechanical adjustment function.
2. Automatically receive battery strings, pick up battery strings to mechanical positions, and pre straighten the glass
3. Receive glass and EVA from the production line. Pick up the battery string from the mechanical position. Place the battery in series on EVA according to the positive and negative electrodes. After completing all actions, the component outputs.
4. The battery string is positioned through visual positioning, fiber optic positioning, and mechanical positioning.

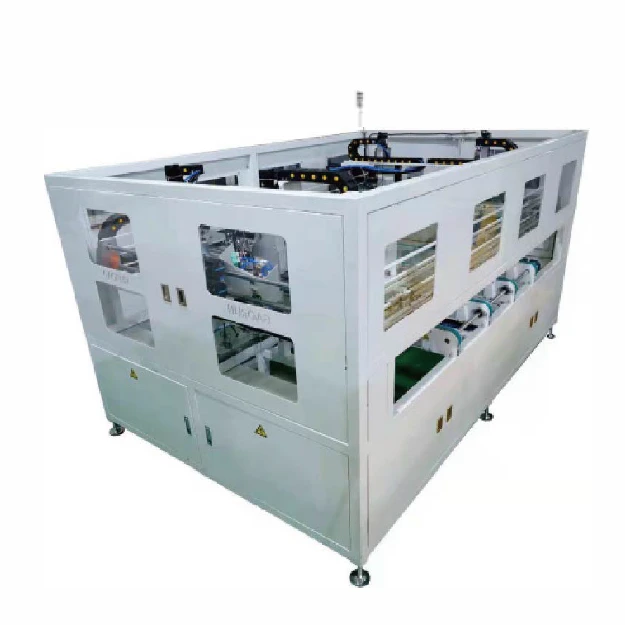

4.Automatic tapping machine

Move the long side forward onto the automatic tape sticking machine, reposition it in the machine, and stick the tape at the designated position on the component.
Automatic tape pasting machine replaces manual labor, saving labor costs
1. The outside of the machine is an integrated frame, which is beautiful.
2. Standard motor frequency conversion control transmission.
When the component is transferred to the correct position, the cylinder will straighten and fix its position

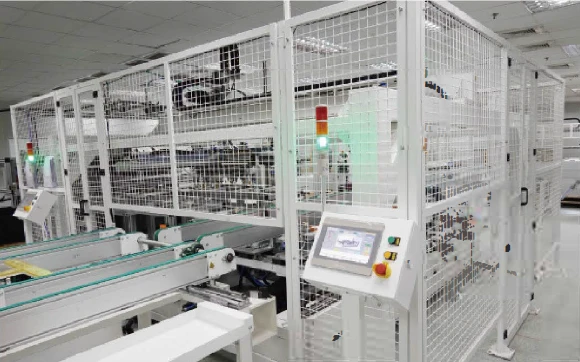

5.Automatic framing

1. Accurate servo motors move components to specific positions for framing without the need for manual operation
2. 12 pairs of suction cups ensure that the glass is stably sucked onto the machine during framing
When the components are in the correct position and the frame is ready, the cylinder will be straightened and clamped. The servo motor will be installed with a frame at the same time.
3. Conveyor method: synchronous belt conveyor.
4. The length and width can be adjusted according to the module size, using quick locking fixtures for quick adjustment to meet different modules.
5. Control mode: motor control+servo drive.
6. Operation mode: automatic/manual.

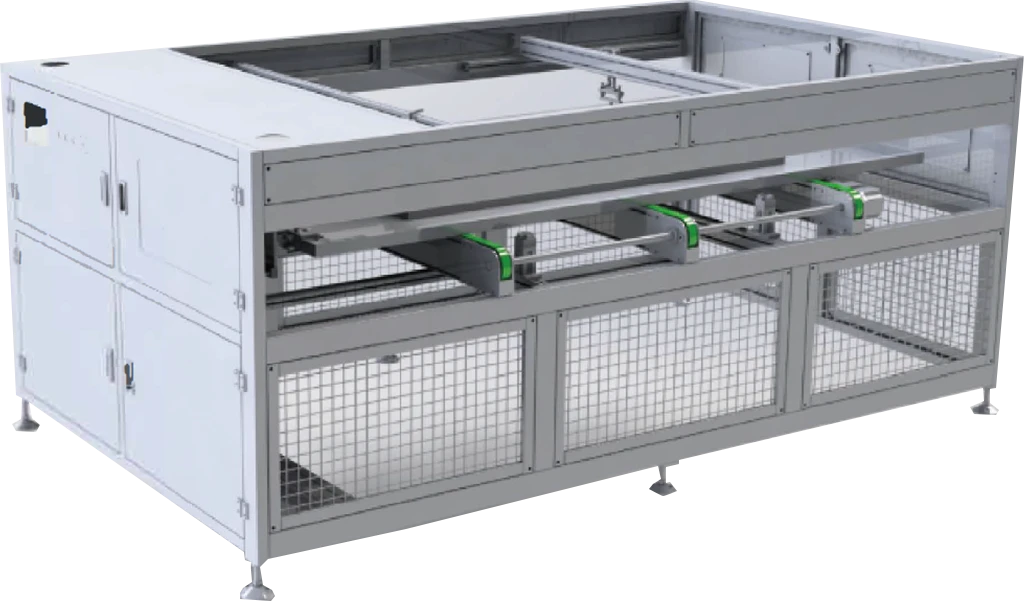

6.IV testing machine

1. After the long side of the component enters the equipment and is straightened inside the machine, the required high voltage is supplied to the component to test its insulation status
2. After powering on within the set time, output the component to EL for inspection
3. When the component is placed in the correct position, the cylinder is adjusted and fixed in position, the ground connection is controlled to be powered on, and the withstand voltage is automatically tested after grounding
4. Standard motor variable frequency control variable speed

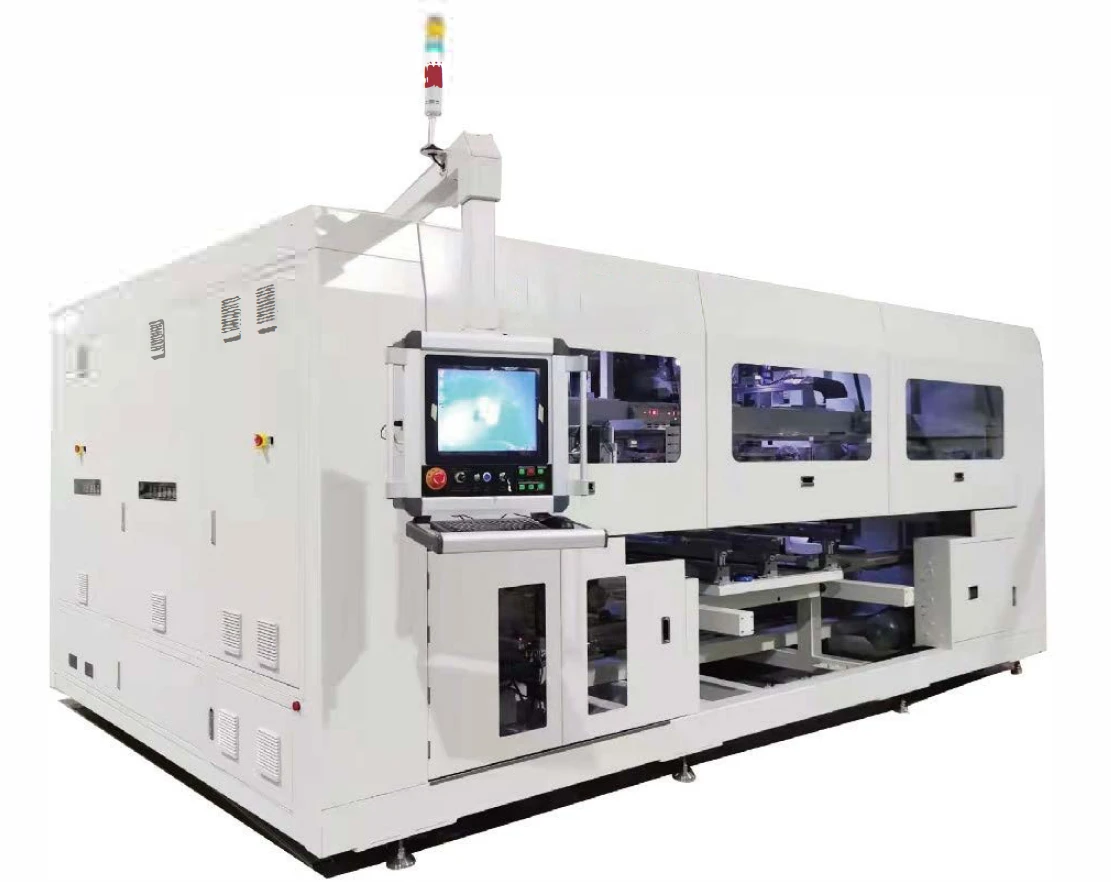

7.Busbar welding machine

Equipment function:

Stretch, correct, cut, bend, and accurately place the head, tail, and middle busbars, and use the lifting hand to perform secondary calibration on the string on the module. The wires at the head and tail of the string are soldered together with the busbars in one go and transmitted to the next workstation. This machine is optional with black paint scraping function, post soldering detection function, and busbar punching function.

8.OTHER EQUIPMENT

To learn more about other device information, please contact us for the latest product content and prices
We will design a suitable production line plan based on your needs
