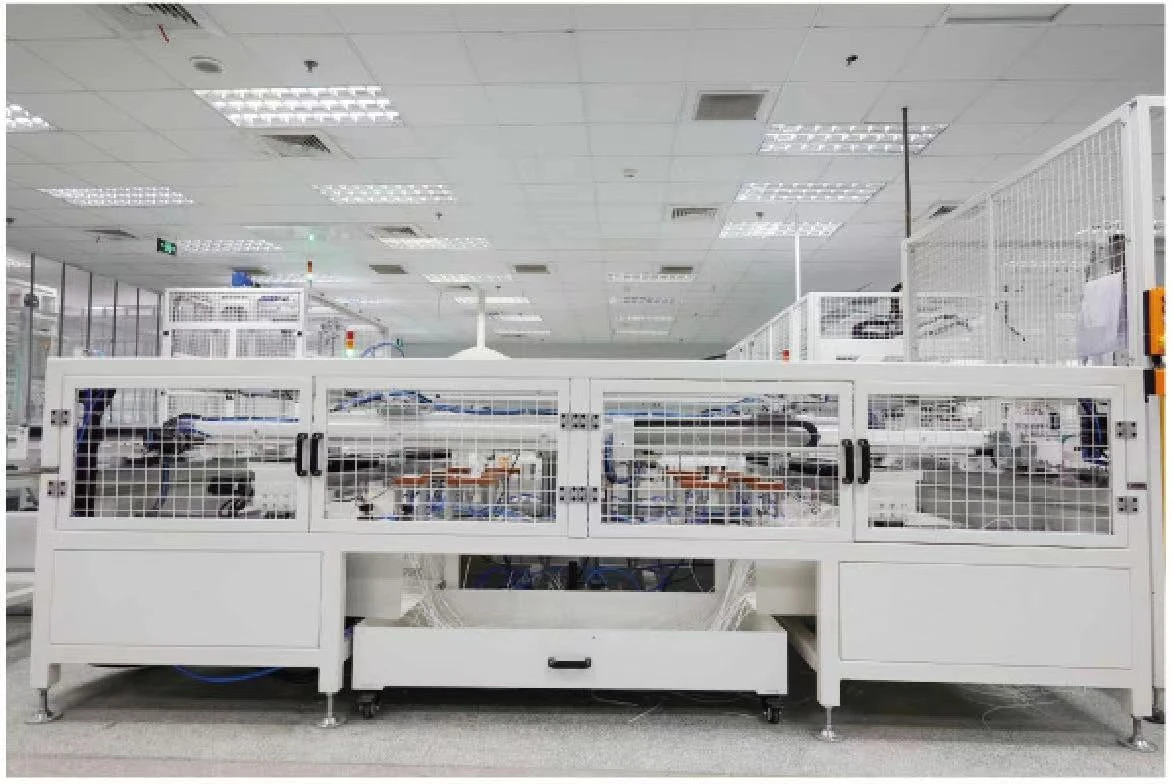

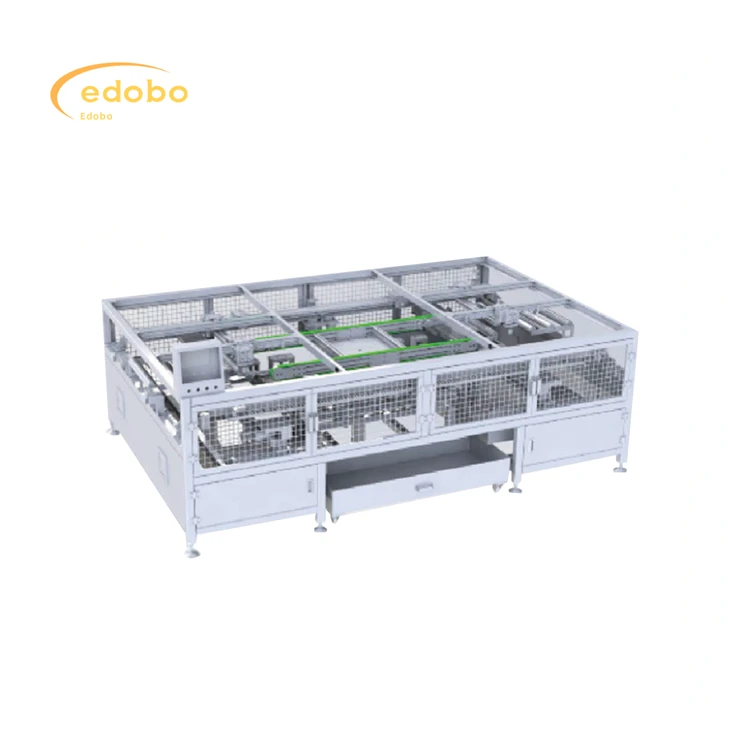

Solar Panels Production Automatic Trimming

Automatic Trimming

Cut the excess backplane and EVA around the laminated assembly

This step is crucial for ensuring the finished modules have the correct dimensions, clean edges, and are ready for the final assembly stages.

What is Trimming in Solar Panel Production?

In solar panel manufacturing, "trimming" refers to the process of removing excess material from the edges of the laminated solar panel assembly. This material usually consists of:

Excess Encapsulant Material: During the lamination process, the encapsulant (typically EVA or POE) flows and extends beyond the edges of the glass and solar cells.

Excess Backsheet Material: The backsheet material also often extends beyond the edges after lamination.

1. The equipment is driven by a servo motor, which has the advantages of accurate precision and smooth operation;
2. The whole machine is equipped with a safety fence, which has the safety protection function;
3. Automatic control of the equipment, and the operation process does not require personnel intervention;
4. When working, the four sides of the component are cut at the same time, which has the advantages of high efficiency and stab巾ty;
5. Set up the guide device to prevent the waste material from splashing;
6. The blade adopts circular arc edge, cut clean, and uses the blade back edge to effectively remove the residual material of the component;
7. Easy to replace the blade
